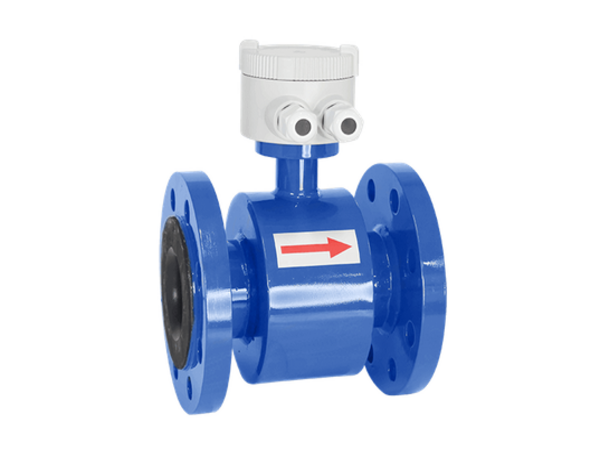

WP-EMF-B Flange Type IV Electromagnetic Flow Meter

WP-EMF series electromagnetic flowmeter based on domestic and foreign field experience research and development of products, not only durable, easy to operate, and stable performance, with high frequency, low frequency excitation can be selected, can adapt to the harsh environment, widely used in petroleum, chemical, metallurgy, textile, paper, environmental protection, food and other industrial sectors and municipal management, Flow measurement in water conservancy construction and other fields.

Product Details>>

Parameter	WP-EMF-B
Model	WP-EMF-B
Installation form	Flange-mounted split type IV
Language selection	Chinese/English display optional (customizable language available)
Nominal diameter	DN10~DN2000
Electrode material	316, Hb, Hc, Ti, Ta, Platinum
Lining material	PTFE, PFA, F46, Chloroprene rubber (CR)
Medium	Conductive liquids (including liquid-solid two-phase media)
Accuracy class	0.2%, 0.5%, 1.0% (DN10~DN200); 0.5%, 1.0% (DN250~DN2000)
Medium conductivity	>5 μS/cm (>20 μS/cm for water)
Excitation mode	Low-frequency square wave excitation; High-frequency square wave excitation (for slurry measurement)
Flow velocity range	0.1~15m/s (flow units selectable)
Connection flange	GB/T9119-2010 (other standards available)
Medium temperature	-40℃~+80℃ (Chloroprene rubber CR); -40℃~+160℃ (PTFE)
Rated pressure	0.6MPa~4.0MPa (varies by diameter, see selection table for details)
Protection grade	IP67, IP68
Output signal	4~20mA output, Frequency/Pulse, Alarm
Communication	RS485 (standard), RS232, HART (optional)
Empty pipe measurement	Empty pipe measurement without additional electrodes, continuous measurement, fixed-point alarm
Recording function	Power-off time recording: automatically records power interruptions and compensates for lost flow (optional)
Infrared remote control	Infrared handheld keypad (optional)
Applications	Acids/alkalis, water supply and drainage, food industry, pulp, ore slurry, etc.
Display	Flow velocity, flow rate, percentage, cumulative flow, fault alarm
Power supply	220V AC, 24V DC
Data card	Records over 10 years of full instrument operation data (readable via card reader)
